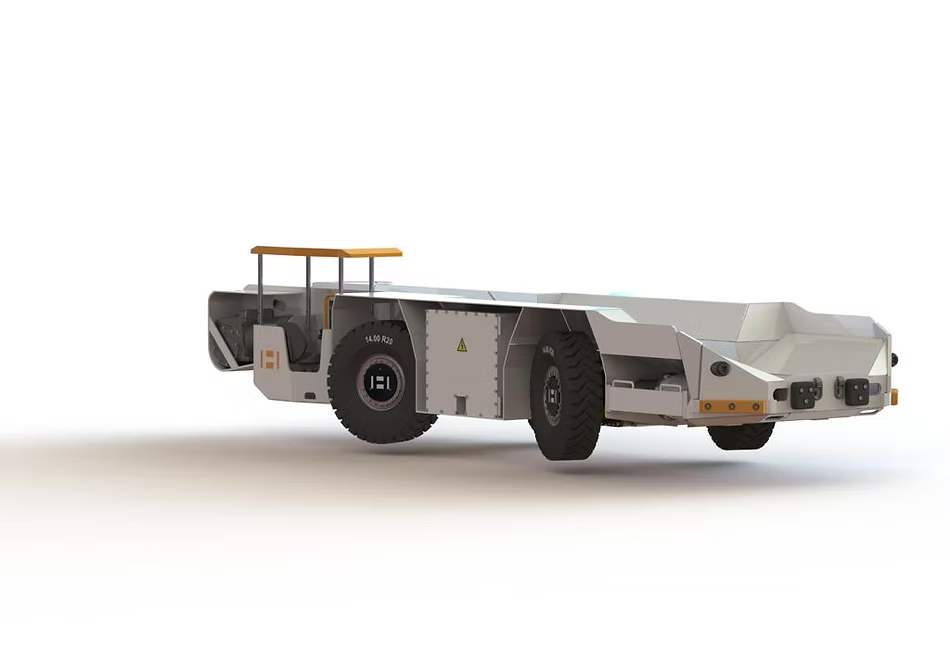

Shuttle Car
Our Shuttle Car is a robust, rubber-tyred, self-propelled underground vehicle designed to deliver efficient and reliable coal transportation from the Continuous Miner or Bolter Miner to the feeder breaker or belt conveyor. Engineered for seamless integration with mechanized mining systems, it serves as a highly efficient intermediate haulage solution, ensuring uninterrupted coal flow and maximizing face productivity. With the capability to carry 15–20 tonnes of coal in a single trip, along with its durable construction, high maneuverability, and dependable performance in demanding underground conditions, our Shuttle Car significantly enhances operational efficiency and overall production output.
Technical Specifications
| Parameter | Specification |
| Payload Capacity (Max.) | 15 Tonnes |
| Machine Length | 8,650 mm |
| Machine Width | 2,600 mm |
| Machine Height (without canopy & side boards) | 1,500 mm |
| Minimum Working Seam Height | 2,600 mm |
| Wheel Gauge | 2,115 mm |
| Dual Chain Conveyor | Yes |
| Ground Clearance | 420 mm |
| Tire Size | 14.00 × R20 |
| Max Speed (Empty) | 0 – 9 km/h |
| Maximum Grade | 8° |
| Approach Angle (Front / Rear) | 10° / 12° |
| Turning Radius (Inside / Outside) | 2,700 / 6,700 mm |
| Wheel Unit | Bevel & Planetary |
| Traction Case | Spur Gears |
| Proximity Detection System | Optional |
| Traction Drive System | VFD |
| Front Gantry Axle | Swinging |
| Rear Gantry Axle | Rigid |
| Conveyor Speed | 0 – 0.6 m/s |
| Supply Voltage | 660 V / 1140 V |
| Electrical Frequency | 50 Hz / 60 Hz |
| Cable Reel Capacity | 150 – 200 m |
Technical Specifications
| Parameter | Specification |
| Payload Capacity (Max.) | 20 Tonnes |
| Machine Length | 9620mm |
| Machine Width | 3600mm |
| Machine Height (without canopy & side boards) | 1700mm |
| Minimum Working Seam Height | 3000mm |
| Wheel Gauge | 2115mm |
| Dual Chain Conveyor | Yes |
| Ground Clearance | 420 mm |
| Tire Size | 14.00 × R20 |
| Max Speed (Empty) | 0 – 9 km/h |
| Maximum Grade | 8° |
| Approach Angle (Front / Rear) | 10° / 12° |
| Turning Radius (Inside / Outside) | 3100 / 7600mm |
| Wheel Unit | Bevel & Planetary |
| Traction Case | Spur Gears |
| Proximity Detection System | Optional |
| Traction Drive System | VFD |
| Front Gantry Axle | Swinging |
| Rear Gantry Axle | Rigid |
| Conveyor Speed | 0 – 0.6 m/s |
| Supply Voltage | 660 V / 1140 V |
| Electrical Frequency | 50 Hz / 60 Hz |
| Cable Reel Capacity | 150 – 200 m |
Why Choose HELWB Shuttle Car
- High Load Carrying Capacity: Designed to handle up to 15 tonnes per trip, ensuring efficient coal transportation and reduced cycle time.
- Superior Haulage Efficiency: Optimized conveyor and traction system enable smooth and continuous coal flow from face to feeder breaker, minimizing production delays.
- Robust & Durable Construction: Heavy-duty structure engineered to withstand harsh underground mining conditions, ensuring long service life and reliability.
- Advanced Safety Features: Equipped with proximity detection system (optional), fail-safe braking, stable low center of gravity, and operator-friendly controls to enhance underground safety.
- Reliable Traction System: VFD-based traction drive with bevel and planetary wheel units ensures smooth operation, better control, and high torque performance.
- Excellent Maneuverability: Compact design with optimized turning radius and swinging front axle allows easy navigation in confined underground galleries.
- Low Maintenance Requirement: Designed for easy access to critical components, reducing downtime and maintenance effort.
- High Availability & Service Support: Backed by strong service support, availability of spares, and quick maintenance response to ensure maximum uptime.
- Operational Flexibility: Suitable for varying seam conditions and gradients, ensuring consistent performance across different mining environments.
- Enhanced Productivity: High payload capacity combined with efficient cycle time significantly improves overall panel productivity
